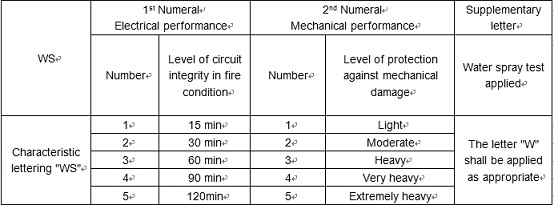

AS/NZS 3013 is a classification system which defines the performance of a Wiring System (WS). The classification system prefix is 'WS' followed by two numerals and cables are subjected to fire at 1050oC from 15mins to 120mins meanwhile Impact Test from 2.5J to 5000J and Cutting Test from 0.3kN to 5.0kN about the level of protection range from light duty to extremely duty.
澳洲AS/NZS3013耐火電纜–標準名稱
AS/NZS3013 Electrical installations-Classification of the fire and mechanical performance of wiring system elements AS/NZS 3013 電氣裝置—配線系統元件的防火和機械性能分類，南京睿督提供澳洲NATA資質的AS/NZS 3013 WS52W電纜耐火衝擊機械性能檢測及等級證書。
AS1074 Steel tubes and tubulars for ordinary service AS1530 Methods for fire tests on building materials, components and structures AS1530.4 Fire-resistance tests of elements of building construction AS/NZS1125 Conductors in insulated electric cables and flexible cords AS/NZS2053 Conduits and fittings for electrical installations (all parts)
AS/NZS3000 Electrical installations (known as the Australian/New Zealand Wiring Rules) AS/NZS3187 Approval and test specification—Mineral-insulated metal-sheathed cables AS/NZS3808 Insulating and sheathing materials for electric cables AS/NZS5000 Electric cables—Polymeric insulated AS/NZS5000.1 Forworking voltages up to and including 0.6/1 (1.2) kV
